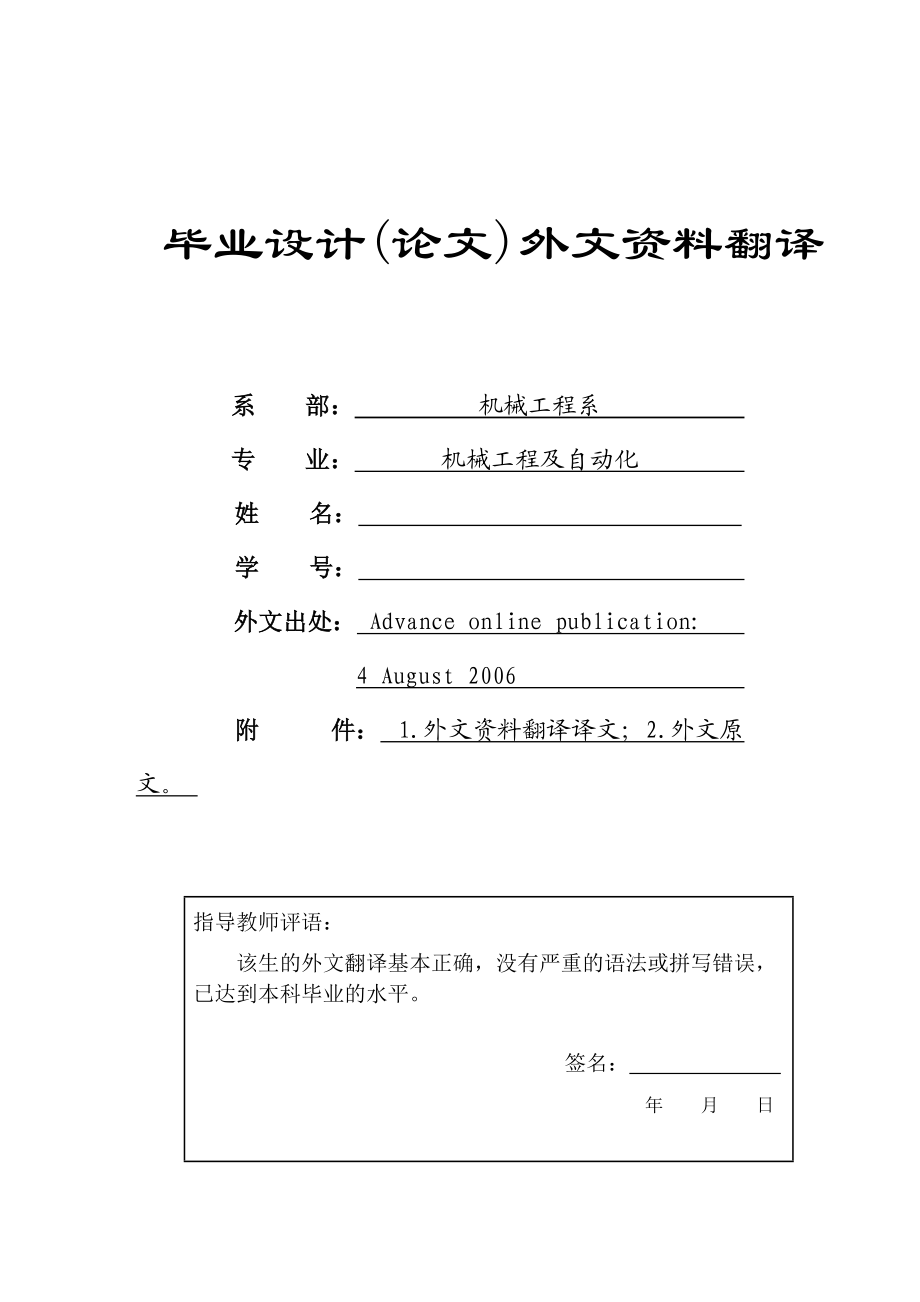

1、 畢業設計(論文)外文資料翻譯系部： 機械工程系 專 業： 機械工程及自動化 姓 名： 學 號： 外文出處： Advance online publication: 4 August 2006 附 件： 1.外文資料翻譯譯文；2.外文原文。 指導教師評語：該生的外文翻譯基本正確，沒有嚴重的語法或拼寫錯誤，已達到本科畢業的水平。 簽名： 年 月 日附件1：外文資料翻譯譯文對移動式遙控裝置的智能控制使用2型模糊理論摘要：我們針對單輪移動式遙控裝置的動態模型開發出一種追蹤控制器，這種追蹤控制器是建立在模糊理論的基礎上將運動控制器和力矩控制器整合起來的裝置。用計算機模擬來確定追蹤控制器的工作情況和它對

2、不同航向的實際用途。關鍵詞：智能控制、2型模糊理論、移動式遙控裝置I. 介紹由于受運動學強制約束，移動遙控裝置是非完整的系統。描述此約束的恒等式不能夠明確的反映出遙控裝置在局部及整體坐標系中的關系。因此，包括它們在內的控制問題吸引了去年控制領域的注意力。不同的方法被用來解決運動控制的問題。Kanayama等人針對一個非完整的交通工具提出了一個穩定的追蹤控制方案，這種方案使用了Lyapunov功能。Lee等人用還原法和飽和約束來解決追蹤控制。此外，大多數被報道過的設計依賴于智能控制方式如模糊邏輯控制和神經式網絡。然而上述提到的發表中大多數都集中在移動式遙控裝置的運動模塊，即這些模塊是受速度控制的

3、。而很少有發表關注到不完整的動力系統，即受力和扭矩控制的模塊：布洛克。在2005年12月15日被視為標準并且在2006年3月5日被公認的手稿。這一著作在某種程度上受到DGEST一個在Grant 493.05-P下的研究所的支持。研究者們同樣也受到了來自CONACYT給予他們研究成果的獎學金的支持。在這篇論文中我展現了一臺追蹤單輪移動式遙控裝置的控制器，這臺追蹤控制器用了一種控制條件如移動遙控裝置的速度達到了有效速度，還用了一種模糊理論控制器如給實際遙控裝置提供了必要扭矩。這篇論文的其余部分的結構如下：第二部分和第三部分對問題作了簡潔描述，包括了單輪車移動遙控裝置的運動和動力模塊和對追蹤控制器的

4、介紹。第四部分用追蹤控制器列舉了些模擬結果。第五部分做出了結論。II. 疑難問題陳述A移動控制裝置這個被看作單輪移動控制器的模型（見圖1），它是由兩個同軸驅動輪和一個自由前輪組成。 圖1. 旋轉移動機械手運動規律可見平面5的運動方程式q&=M(q)&+V(q,q)v+G(q)= (1)q= q是描述控制器位置的坐標矢量，（x，y）是笛卡爾坐標，它指出了構件的移動中心，是構件朝向和x軸之間的夾角（夾角為逆時針形式）；v為速度矢量，v 和w分別為長度和角速度; 為輸入矢量，M是一個對稱的正定義的固定零件，R是一個向心的零件,G是重力矢量。等式（1，a）表示移動控制裝置的運動或駕駛系統。注意到防滑條

5、件強加了一個不完整的約束，也就是說這個移動控制裝置只能夠朝著驅動輪軸線的方向移動。ycos-xsin=0 (2)移動遙控裝置式的追蹤控制器構造如下：一條特定的預想軌跡q和移動遙控裝置的方向，我們必須設計出一個控制器使其適用于合適的扭矩諸如測定的位置達到參考位置（由3式表示）。（3）為了達到控制目標，我們基于5的步驟，我們得到利用模糊邏輯控制器（FLC）控制著輪系(1.a)。追蹤控制器的大體結構見圖2III.運動模塊的控制我們基于Kanayama等人提議的程序和Nelson等人解決運動模塊的追蹤問題，這由V表示出來。假設軌跡q達到了（4）式的要求：q= (4)用遙控器的局部框架（圖1中的移

6、動坐標系），錯誤的坐標可被定義為：e=T(q-q), =(5)輔助速度控制著輸入量，其可以對（1，a）實現追蹤。表示如下：v=f(e,v), =(6)其中k1, k2 and k3是連續的正整數IV.模糊邏輯控制器模糊邏輯控制器的目的是找出控制輸入量 如實際速度矢量v和速度矢量vc之間的關系（7）就像圖2中所顯示的一樣，根本上說FLC有兩個輸入變量相應的引出兩個速度錯誤，分別是長度和角度，且兩個輸出變量，驅動和旋轉輸入扭矩，分別為F和N，他們的作用分別是1的所有直角和2的梯形，且很容易被估算出來。圖3和圖4描繪了N,C,P代表的模糊方框中的MFS結合了每一個輸入和輸出變量，這些變量都被包括在范

7、圍-1,1中圖2. 追蹤控制結構圖3. 輸入可變電壓 ev 和 ew圖 4. 輸出的F和NFLC中包含9條控制著輸入和輸出關系的直線，這采用了Mamdani形式的推論引擎，我們利用了萬有引力中心的方法來實現非模糊程序。在表格1中，我們表現了一種直線形式：Rule i: 假如ev 是 G1 ，ew 是G2 那么F 是G3 ，N 是G4 Where G1.G4 are the fuzzy set associated to each variable and i= 1 . 9.表1 模糊尺組In Table I, N means NEGATIVE, P means POSITIVE and C m

8、eans ZERO.V.模擬結果在Matalb實現的模擬實驗是用來測試移動式遙控裝置的追蹤控制器（在（1）中已有定義）。我們認為初始位置q和 初始速度v。在圖5到圖8中，我們體現了對于情況1的模擬結果。位置和方向錯誤分別見圖5和圖6，錯誤可近似于零。追蹤軌跡（見圖7）也和預想的及其接近，速度錯誤（見圖8）減小至0，達到了整個模擬過程中1秒內的控制目標。圖9是測試控制器的模擬簡圖。圖10是三個變量的追蹤錯誤。最后，圖11是遺傳運算法則的演化過程，這個通常用來查找模糊控制器的最佳參數。圖 5.位置錯誤參量值。（直線為x，虛線為y）圖 6.方向錯誤參量值圖 7.移動遙控裝置運動軌跡圖 8. 速度錯誤

9、: 實線: 錯誤在e, 虛線:錯誤在 evw圖 9 控制器的模擬板塊圖10三個變量的跟蹤錯誤圖 11 查找最優的方案仿真表2為模糊控制器在25個在不同環境下所產生的模擬結果。從這個表中我們同樣選擇了不同的速度和位置參數 表2 不同模糊控制器實驗仿真 VI.總結追蹤控制器是將單輪移動遙控裝置的模糊邏輯控制器與可測定點的穩定性和速度軌跡的動力學整合起來的。計算機模擬結果確定了這臺控制器可以實現我們的目標。在以后的工作中，圖2中的控制結構可以做些擴展，比如說增加些跟蹤的準確性或工作性能。附件2：外文原文Intelligent Control of an Autonomous Mobile Robot

10、 using Type-2 Fuzzy LogicAbstract We develop a tracking controller for the dynamic model of unicycle mobile robot by integrating a kinematic controller and a torque controller based on Fuzzy Logic Theory. Computer simulations are presented confirming the performance of the tracking controller and it

11、s application to different navigation problems. Index TermsIntelligent Control, Type-2 Fuzzy Logic, Mobile Robots. I. INTRODUCTION Mobile robots are nonholonomic systems due to the constraints imposed on their kinematics. The equations describing the constraints cannot be integrated simbolically to

12、obtain explicit relationships between robot positions in local and global coordinates frames. Hence, control problems involve them have attracted attention in the control community in the last years 11. Different methods have been applied to solve motion control problems. Kanayama et al. 10 propose

13、a stable tracking control method for a nonholonomic vehicle using a Lyapunov function. Lee et al. 12 solved tracking control using backstepping and in 13 with saturation constraints. Furthermore, most reported designs rely on intelligent control approaches such as Fuzzy Logic Control 1814171820 and

14、Neural Networks 619. However the majority of the publications mentioned above, has concentrated on kinematics models of mobile robots, which are controlled by the velocity input, while less attention has been paid to the control problems of nonholonomic dynamic systems, where forces and torques are

15、the true inputs: Bloch Manuscript received December 15, 2005 qnd accepted on April 5, 2006. This work was supported in part by the Research Council of DGEST under Grant 493.05-P. The students also were supported by CONACYT with scholarships for their graduate studies. Oscar Castillo is with the Divi

16、sion of Graduate Studies and Research in Tijuana Institute of Technology, Mexico (corresponding author phone: 52664-623-6318; fax: 52664-623-6318; e-mail: ocastillotectijuana.mx). Patricia Melin is with the Division of Graduate Studies and Research in Tijuana Institute of Technology, Mexico (e-mail:

17、 hariastectijuana.mx). Arnulfo Alanis is with the Division of Graduate Studies and Research in Tijuana Institute of Technology, Mexico (e-mail: pmelintectijuana.mx) Leslie Astudillo is a graduate student in Computer Science with the Division of Graduate Studies and Research in Tijuana Institute of T

18、echnology, Mexico (e-mail: pmelintectijuana.mx) Jose Soria is a with the Division of Graduate Studies and Research in Tijuana Institute of Technology, Mexico (e-mail: jsoriaucsd.edu). Luis Aguilar is with CITEDI-IPN Tijuana, Mexico(e-mail:laguilarcitedi.mx) and Drakunov 2 and Chwa 4, used a sliding

19、mode control to the tracking control problem. Fierro and Lewis 5 propose a dynamical extension that makes possible the integration of kinematic and torque controller for a nonholonomic mobile robot. Fukao et al. 7, introduced an adaptive tracking controller for the dynamic model of mobile robot with

20、 unknown parameters using backstepping. In this paper we present a tracking controller for the dynamic model of a unicycle mobile robot, using a control law such that the mobile robot velocities reach the given velocity inputs, and a fuzzy logic controller such that provided the required torques for

21、 the actual mobile robot. The rest of this paper is organized as follows. Sections II and III describe the formulation problem, which include: the kinematic and dynamic model of the unicycle mobile robot and introduces the tracking controller. Section IV illustrates the simulation results using the

22、tracking controller. The section V gives the conclusions. II. PROBLEM FORMULATION A. The Mobile Robot The model considered is a unicycle mobile robot (see Fig. 1), it consist of two driving wheels mounted on the same axis and a front free wheel 3. Fig. 1.Fig. 1. Wheeled mobile robot.The motion can b

23、e described with equation (1) of movement in a plane 5:Q&=M(q)&+V(q,q)v+G(q)= (1)Where q=is the vector of generalized coordinates which describes the robot position, (x,y) are the cartesian coordinates, which denote the mobile center of mass and is the angle between the heading direction and the x-a

24、xis(which is taken counterclockwise form);v= is the vector of velocities, v and w are the linear and angular velocities respectively; is the input vector,M(q)R is a symmetric and positive-definite inertia matrix, V(q,q)Ris the centripetal and Coriolis matrix,G(q)R is the gravitational vector. Equati

25、on (1.a) represents the kinematics or steering system of a mobile robot. Notice that the no-slip condition imposed a non-holonomic constraint described by (2), that it means that the mobile robot can only move in the direction normal to the axis of the driving wheels. ycos-xsin=0 (2)B. Tracking Cont

26、roller of Mobile Robot Our control objective is established as follows: Given a desired trajectory qd(t) and orientation of mobile robot we must design a controller that apply adequate torque such that the measured positions q(t) achieve the desired reference qd(t) represented as (3): （3）To reach th

27、e control objective, we are based in the procedure of 5, we deriving a (t) of a specific vc(t) that controls the steering system (1.a) using a Fuzzy Logic Controller (FLC). A general structure of tracking control system is presented in the Fig. 2. III. CONTROL OF THE KINEMATIC MODEL We are based on

28、the procedure proposed by Kanayama et al. 10 and Nelson et al. 15 to solve the tracking problem for the kinematic model, this is denoted as vc(t). Suppose the desired trajectory qd satisfies (4): q= (4)Using the robot local frame (the moving coordinate system x-y in figure 1), the error coordinates

29、can be defined as (5): e=T(q-q), =(5)And the auxiliary velocity control input that achieves tracking for (1.a) is given by (6): v=f(e,v), =(6)Where k1, k2 and k3 are positive constants. IV. FUZZY LOGIC CONTROLLERThe purpose of the Fuzzy Logic Controller (FLC) is to find a control input such that the

30、 current velocity vector v to reach the velocity vector vc this is denoted as (7): （7）As is shown in Fig. 2, basically the FLC have 2 inputs variables corresponding the velocity errors obtained of (7) (denoted as ev and ew: linear and angular velocity errors respectively), and 2 outputs variables, t

31、he driving and rotational input torques (denoted by F and N respectively). The membership functions (MF)9 are defined by 1 triangular and 2 trapezoidal functions for each variable involved due to the fact are easy to implement computationally. Fig. 3 and Fig. 4 depicts the MFs in which N, C, P repre

32、sent the fuzzy sets 9 (Negative, Zero and Positive respectively) associated to each input and output variable, where the universe of discourse is normalized into -1,1 range. Fig. 2. Tracking control structureFig. 3. Membership function of the input variables ev and ewFig. 4. Membership functions of

33、the output variables F and N. The rule set of FLC contain 9 rules which governing the input-output relationship of the FLC and this adopts the Mamdani-style inference engine 16, and we use the center of gravity method to realize defuzzification procedure. In Table I, we present the rule set whose fo

34、rmat is established as follows: Rule i: If ev is G1 and ew is G2 then F is G3 and N is G4 Where G1.G4 are the fuzzy set associated to each variable and i= 1 . 9.TABLE 1 FUZZY RULE SETIn Table I, N means NEGATIVE, P means POSITIVE and C means ZERO.V. SIMULATION RESULTS Simulations have been done in M

35、atlab to test the tracking controller of the mobile robot defined in (1). We consider the initial position q(0) = (0, 0, 0) and initial velocity v(0) = (0,0). From Fig. 5 to Fig. 8 we show the results of the simulation for the case 1. Position and orientation errors are depicted in the Fig. 5 and Fi

36、g. 6 respectively, as can be observed the errors are sufficient close to zero, the trajectory tracked (see Fig. 7) is very close to the desired, and the velocity errors shown in Fig. 8 decrease to zero, achieving the control objective in less than 1 second of the whole simulation. We show in Fig. 9

37、the Simulink block diagram to test the controller. We also show in Fig. 10 the tracking errors in the three variables. Finally, we show in Fig. 11 the evolution of the genetic algorithm that was used to find the optimal parameters for the fuzzy controller. Fig. 5. Positions error with respect to the

38、 reference values. Solid: error in x, dotted: error in y. Fig. 6. Orientation error with respect to the reference values.Fig. 7. Mobile Robot Trajectory.Fig. 8. Velocity errors: Solid: error in e, dotted: error in evwFig. 9 Simulink block diagram of the controller.Fig. 10 Tracking errors in the thre

39、e variables.Fig. 11 Evolution of GA for finding optimal ControllerIn Table II we show simulation results for 25 experiments with different conditions for the gains of the fuzzy controller. We can also appreciate from this table that different reference velocities and positions were considered. TABLE

40、 II SIMULATION RESULTS FOR DIFFERENT EXPERIMENTS WITH THE FUZZY CONTROLLER.VI. CONCLUSIONS We described the development of a tracking controller integrating a fuzzy logic controller for a unicycle mobile robot with known dynamics, which can be applied for both, point stabilization and trajectory tra

41、cking. Computer simulation results confirm that the controller can achieve our objective. As future work, several extensions can be made to the control structure of Fig. 2, such as to increase the tracking accuracy and the performance level.REFERENCES 1 S. Bentalba, A. El Hajjaji, A. Rachid, Fuzzy C

42、ontrol of a Mobile Robot: A New Approach, Proc. IEEE Int. Conf. On Control Applications, Hartford, CT, pp 69-72, October 1997. 2 A. M. Bloch, S. Drakunov, Tracking in NonHolonomic Dynamic System Via Sliding Modes, Proc. IEEE Conf. On Decision & Control, Brighton, UK, pp 1127-1132, 1991. 3 G. Campion

43、, G. Bastin, B. DAndrea-Novel, Structural Properties and Classification of Kinematic and Dynamic Models of Wheeled Mobile Robots, IEEE Trans. On Robotics and Automation, Vol. 12, No. 1, February 1996. 4 D. Chwa., Sliding-Mode Tracking Control of Nonholonomic Wheeled Mobile Robots in Polar coordinate

44、s, IEEE Trans. On Control Syst. Tech. Vol. 12, No. 4, pp 633-644, July 2004. 5 R. Fierro and F.L. Lewis, Control of a Nonholonomic Mobile Robot: Backstepping Kinematics into Dynamics. Proc. 34th Conf. on Decision & Control, New Orleans, LA, 1995. 6 R. Fierro, F.L. Lewis, Control of a Nonholonomic Mo

45、bile Robot Using Neural Networks, IEEE Trans. On Neural Networks, Vol. 9, No. 4, pp 589 600, July 1998. 7 T. Fukao, H. Nakagawa, N. Adachi, Adaptive Tracking Control of a NonHolonomic Mobile Robot, IEEE Trans. On Robotics and Automation, Vol. 16, No. 5, pp. 609-615, October 2000. 8 S. Ishikawa, A Me

46、thod of Indoor Mobile Robot Navigation by Fuzzy Control, Proc. Int. Conf. Intell. Robot. Syst., Osaka, Japan, pp 1013-1018, 1991. 9 J. S. R. Jang, C.T. Sun, E. Mizutani, Neuro Fuzzy and Soft Computing: A Computational Approach to Learning and Machine Intelligence, Prentice Hall, Upper Sadle River, N

47、J, 1997. 10 Y. Kanayama, Y. Kimura, F. Miyazaki T. Noguchi, A Stable Tracking Control Method For a Non-Holonomic Mobile Robot, Proc. IEEE/RSJ Int. Workshop on Intelligent Robots and Systems, Osaka, Japan, pp 1236- 1241, 1991. 11 I. Kolmanovsky, N. H. McClamroch., Developments in Nonholonomic Nontrol

48、 Problems, IEEE Control Syst. Mag., Vol. 15, pp. 2036, December. 1995. 12 T-C Lee, C. H. Lee, C-C Teng, Tracking Control of Mobile Robots Using the Backsteeping Technique, Proc. 5th. Int. Conf. Contr., Automat., Robot. Vision, Singapore, pp 1715-1719, December 1998. 13 T-C Lee, K. Tai, Tracking Cont

49、rol of Unicycle-Modeled Mobile robots Using a Saturation Feedback Controller, IEEE Trans. On Control Systems Technology, Vol. 9, No. 2, pp 305-318, March 2001. 14 T. H. Lee, F. H. F. Leung, P. K. S. Tam, Position Control for Wheeled Mobile Robot Using a Fuzzy Controller, IEEE pp 525-528, 1999. 15 W.

50、 Nelson, I. Cox, Local Path Control for an Autonomous Vehicle, Proc. IEEE Conf. On Robotics and Automation, pp. 1504-1510, 1988. 16 K. M. Passino, S. Yurkovich, “Fuzzy Control”, Addison Wesley Longman, USA 1998. 17 S. Pawlowski, P. Dutkiewicz, K. Kozlowski, W. Wroblewski, Fuzzy Logic Implementation

51、in Mobile Robot Control, 2nd Workshop On Robot Motion and Control, pp 65-70, October 2001. 18 C-C Tsai, H-H Lin, C-C Lin, Trajectory Tracking Control of a Laser-Guided Wheeled Mobile Robot, Proc. IEEE Int. Conf. On Control Applications, Taipei, Taiwan, pp 1055-1059, September 2004. 19 K. T. Song, L.
